Valve Cover Gaskets – DODGE VIPER V-10 “ULTIMATE” Silicone

VALVE COVER GASKETS

– “ULTIMATE”  Silicone

for

DODGE VIPER V-10

 –    Basically, the gaskets have a layer of fiberglass that is centered

        between 2 layers of silicone which allows the material to

        maintains its original dimensions when subjected to changes in

        temperature and humidity.

        As a result, it gives the material dimensional stability and

        has a higher tensile strength.

       This is the absolute most stress that a material can resist while

        being pulled or stretched.

  –    Not only is the material resistant to deterioration by weathering

        and engine oil but also withstands temperatures and remains

        flexible over the temperature range of  -100 to 500 degrees

        Fahrenheit.

–     Additionally, the gaskets are made from aerospace mechanical

        grade silicone and will not break down and deform or crack up

        like cork or neoprene.

       Consequently, this is one tough gasket.

  –   Finally, this is a reusable gasket.

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

Fits Models:

Dodge Viper V-10

1992 – 2002

Part #:              RG-5245095FR

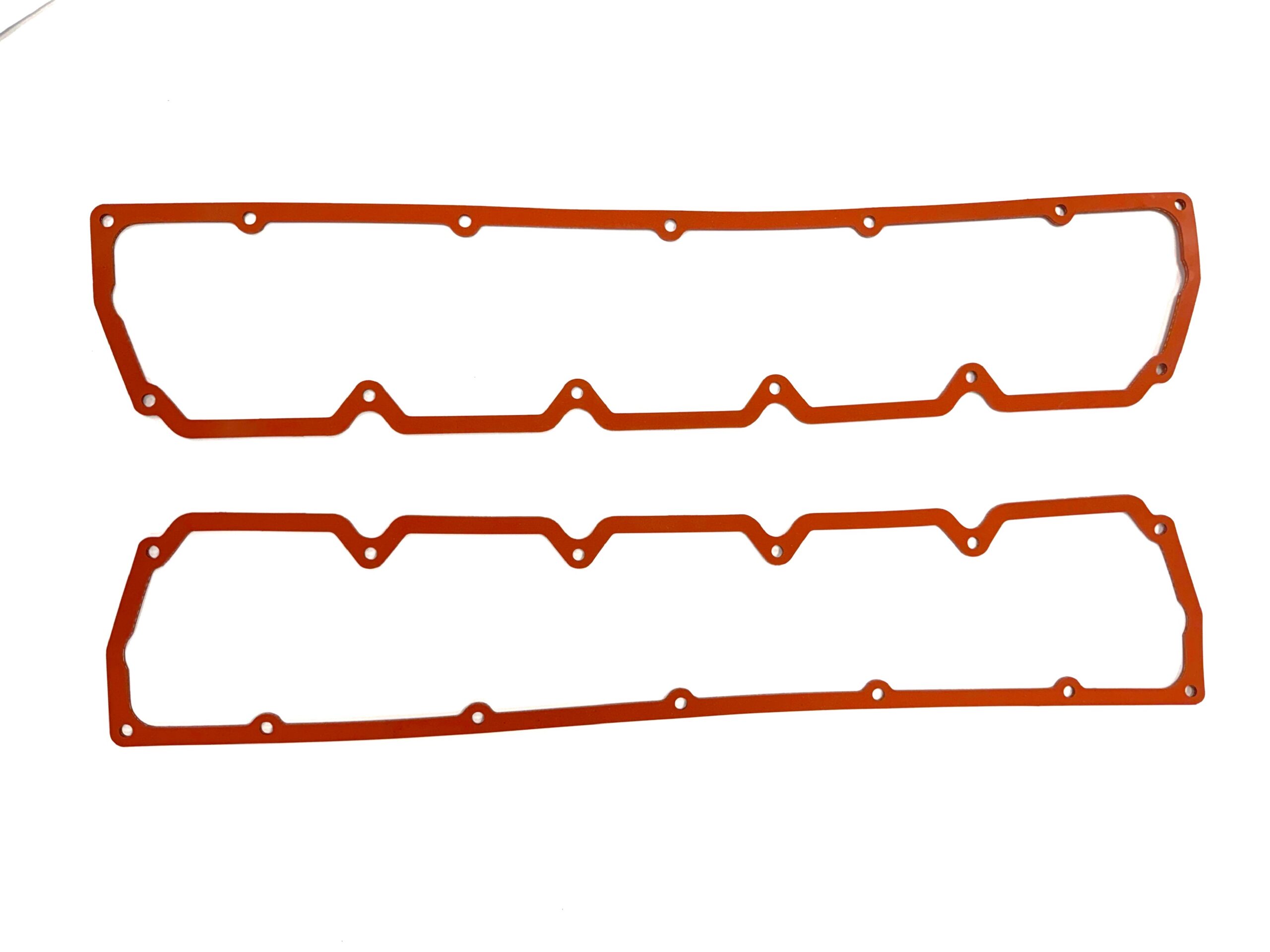

Set of 2 “ULTIMATE” silicone gaskets

Thickness of gasket: 1/8″ thick.

Reusable.

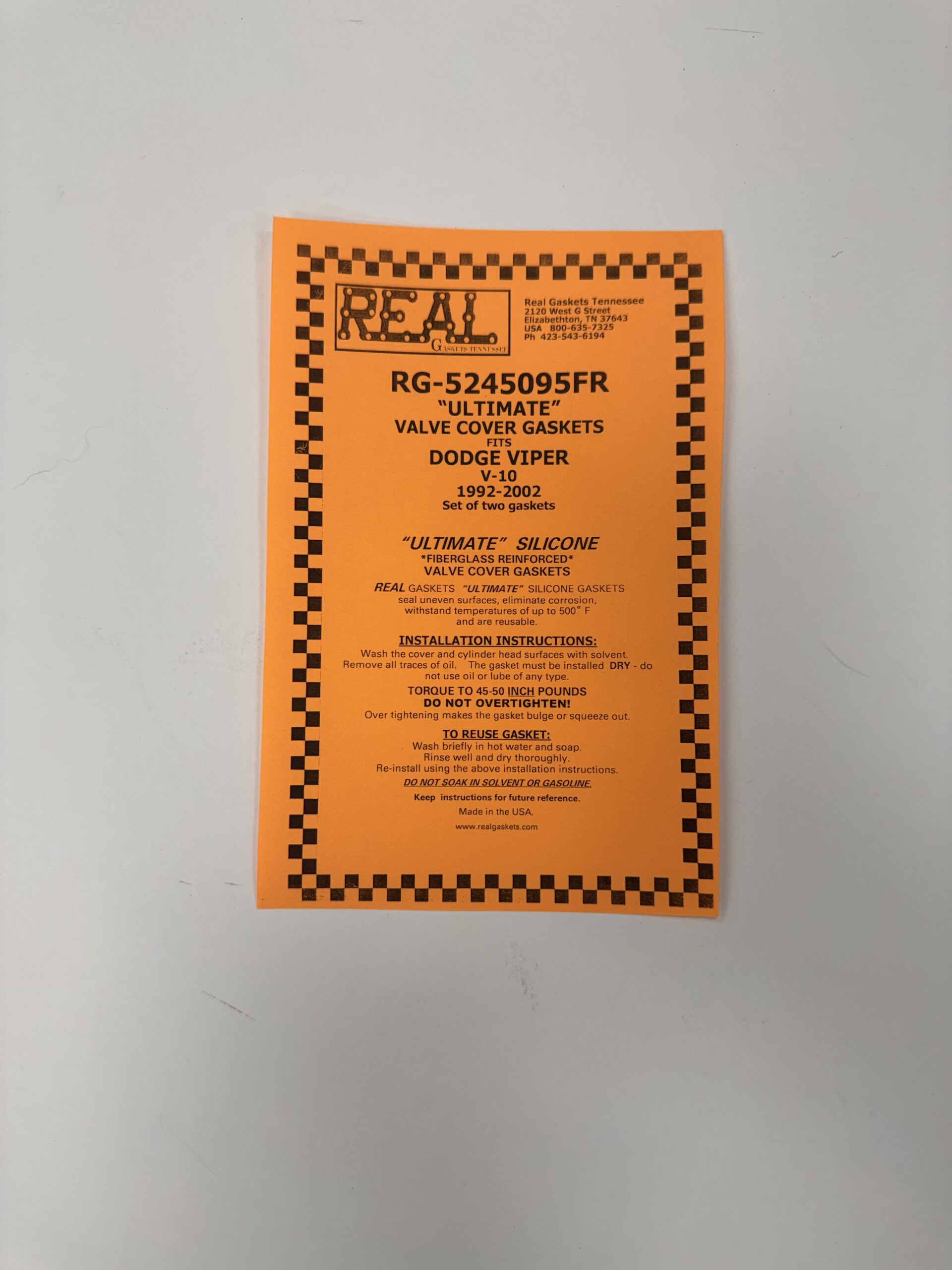

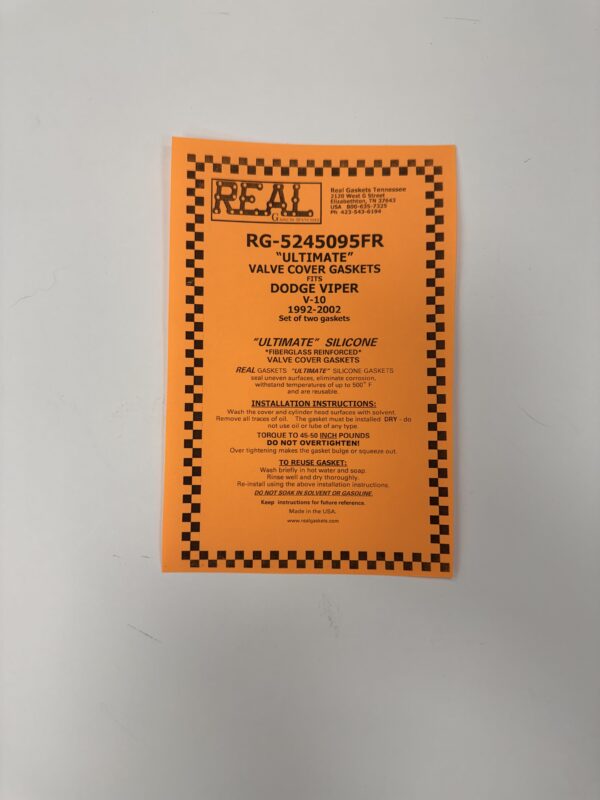

INSTALLATION INSTRUCTIONS:

1.    Wash the cover and cylinder head surfaces with solvent.
2.    Remove all traces of oil.
3.    The gaskets must be installed DRY  (NO OIL  OR LUBE OF ANY TYPE).
4.    TORQUE TO 45-50  INCH POUNDS

             DO NOT OVER TIGHTEN!

           Over tightening makes the gasket bulge out or squeeze out.

           If that happens then back off on the torque.

TO RE-USE GASKET:

1.    Wash gaskets briefly in hot water and soap.
2.    Rinse off gaskets and dry thoroughly.
3.    Re-install using the above installation instructions.

DO NOT SOAK IN SOLVENT OR GASOLINE.

PROUDLY MADE IN THE USA.

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
